How to stream ROBLOX gameplay (PC) to Twitch

Step 1: create a free Twitch account

Step one of streaming on Twitch is to go to Twitch.TV and create an account for yourself. It’s free.

Step 2: get your streaming software

As mentioned in an article last week, OBS (or Open Broadcaster Software) is open-source (i.e., free) PC software for livestreaming. Go ahead and install this software – we have used it here at ROBLOX, and the developers who took place in the Winter Games livestream used it, as well. It has proven to work well with ROBLOX.

There are alternative streaming packages, with XSplit being one of the most common for game streaming. Licenses for the full XSplit feature set do require payment, though.

Step 3: set up your ROBLOX stream

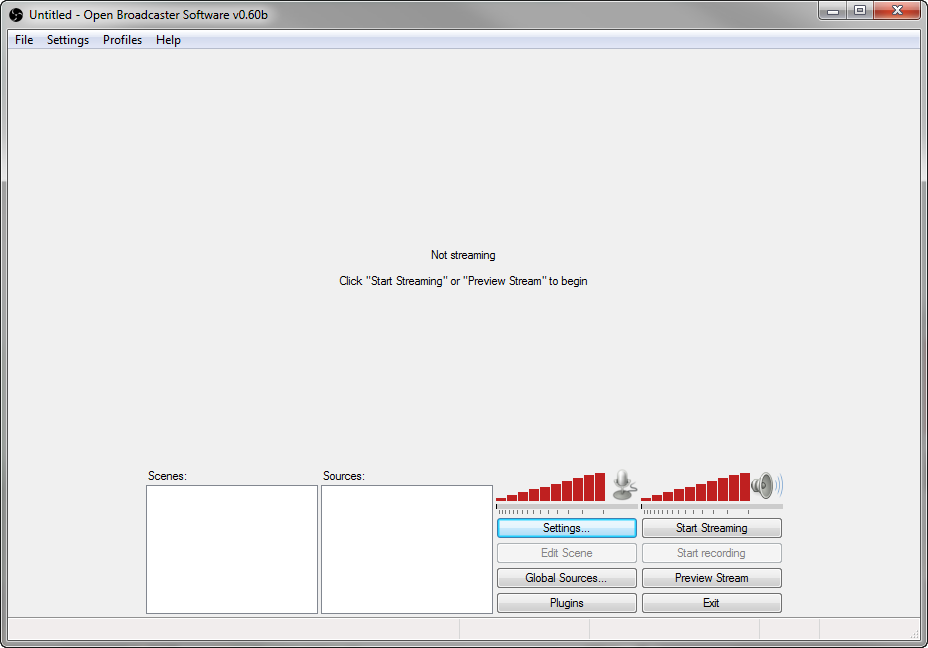

Launch OBS. You’ll see a screen like this. It doesn’t look like much, but it soon will.

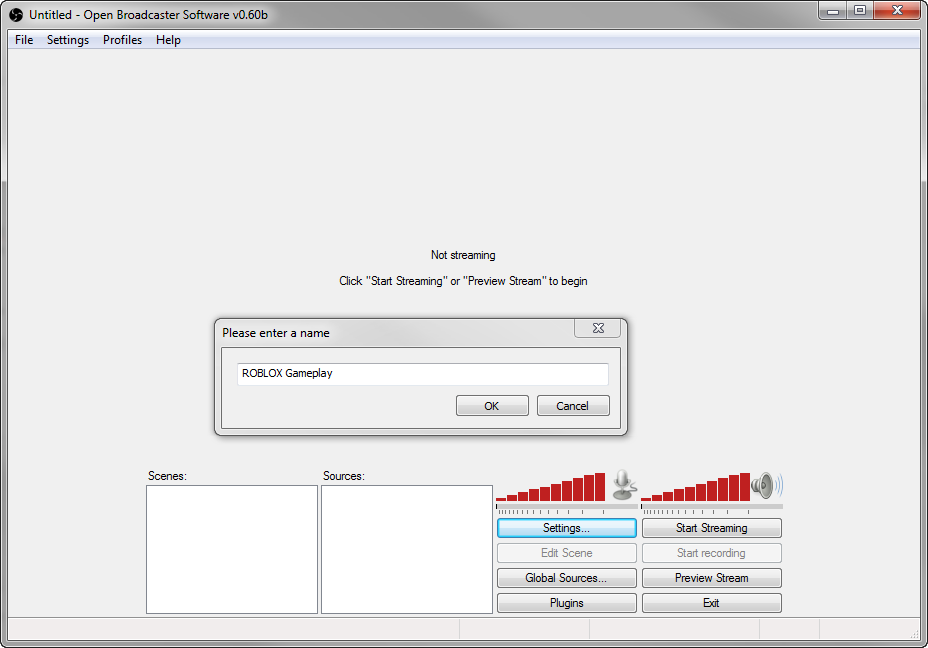

Next, right click in the white space under Scenes and click Add Scene. Title it ROBLOX Gameplay. This will serve as the “container” for your video sources.

Now, launch a ROBLOX game and switch back to OBS (use Alt+Tab if your game launches in full-screen mode). Back in OBS, right click in the white space under Sources and click Add > Game Capture.

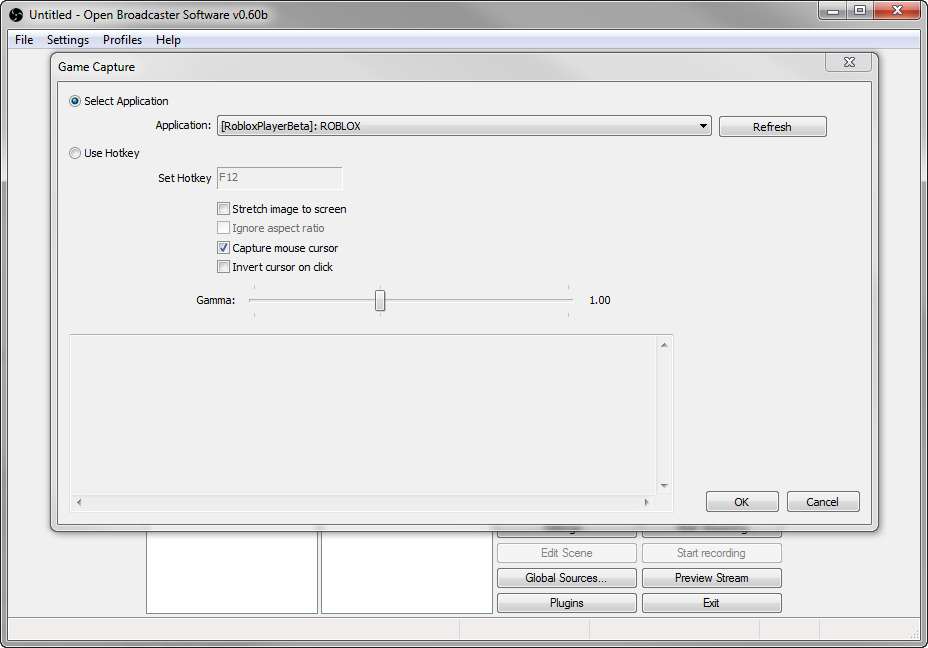

With the Select Application radio button selected, use the dropdown box to select ROBLOX (look for [RobloxPlayerBeta]: ROBLOX).

At this point, OBS is capturing your gameplay (video and audio) and microphone input. Click Preview Stream to verify that it’s working – you should see a picture (it will be a still image if your ROBLOX player window is minimized) and your audio meters should be moving.

If you are not getting microphone audio, click Tools > Settings and make sure the correct microphone is selected as the Micorphone/Auxillary Audio Device. You might need to tweak your microphone settings in the Windows Control Panel to enable your microphone or increase the volume.

Step 4: make your stream live

After you create a Twitch account, you can generate a unique Stream Key for your channel. This is a long, random set of characters you need to push gameplay from your computer to Twitch. Log into your Twitch account, then click your username at the top of the screen and go to your Dashboard. (Alternatively, expand the control panel on the left side of any Twitch page and click Dashboard.)

From the Dashboard’s navigation menu, click the Stream Key link. Click the Show Key button, then copy the entire string of characters. Don’t give this key away unless you want to have multiple people streaming to your channel.

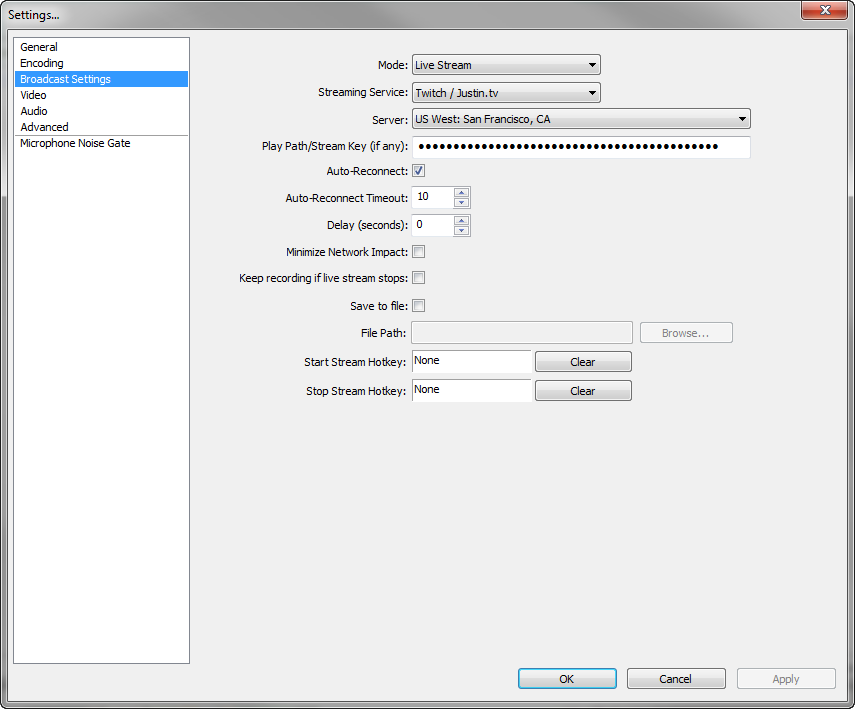

Switch back over to OBS and click Settings > Settings. Under the Broadcast Settings tab, change your streaming service to Twitch / Justin.tv using the dropdown box, then enter your Stream Key under Play Path/Stream Key (if any).

Now, from the main OBS screen, click the Start Streaming button. (Make sure you stop your preview first, if it’s still running.) Your gameplay should start broadcasting on Twitch after a short delay. (There will always be at least some delay.)

You can ignore the OBS window and start playing ROBLOX. You might want to check your Twitch channel to make sure the broadcast is successful, but make sure the Twitch player’s audio is muted.

Customizing your stream

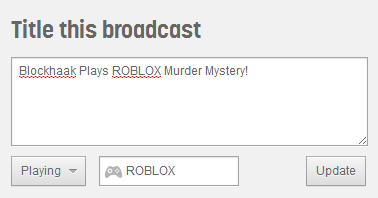

This is important! If you want people to be able to find your stream, make sure you give it a descriptive name (e.g., Blockhaak Playing ROBLOX Murder Mystery!) and specify that you’re playing ROBLOX (in all capital letters). Following these steps will also qualify you for streaming rewards, a topic on which we’ll elaborate in the future.

Adding a webcam

Integrating a webcam video feed into your ROBLOX stream adds a nice personal touch, though it is strictly optional. Adding it to the feed is pretty simple.

1. Right click in the white space under Sources
2. Click Add > Video Capture Device
3. Choose your webcam from the dropdown Device list
4. Click OK

Make sure your webcam feed is listed above your ROBLOX game capture source. With the webcam feed selected, click Edit Scene to resize it and move it into a corner of your scene.

Streaming from a Mac

Unfortunately, there is no open-source software like OBS available for Mac at this time. Streaming ROBLOX to Twitch on a Mac requires a combination of software, as outlined in this brief help page from Twitch. If any readers have experience with streaming ROBLOX from a Mac, please let us know.

More information

The quality of your stream will depend on your system hardware and internet connection speed. If you need to adjust quality settings to improve your stream’s frame rate, I recommend browsing Twitch’s complete guide to livestreaming with OBS. This will help you choose the right settings (bit rate, frame rate and resolution) for your hardware.

We’ll see you on the air!
